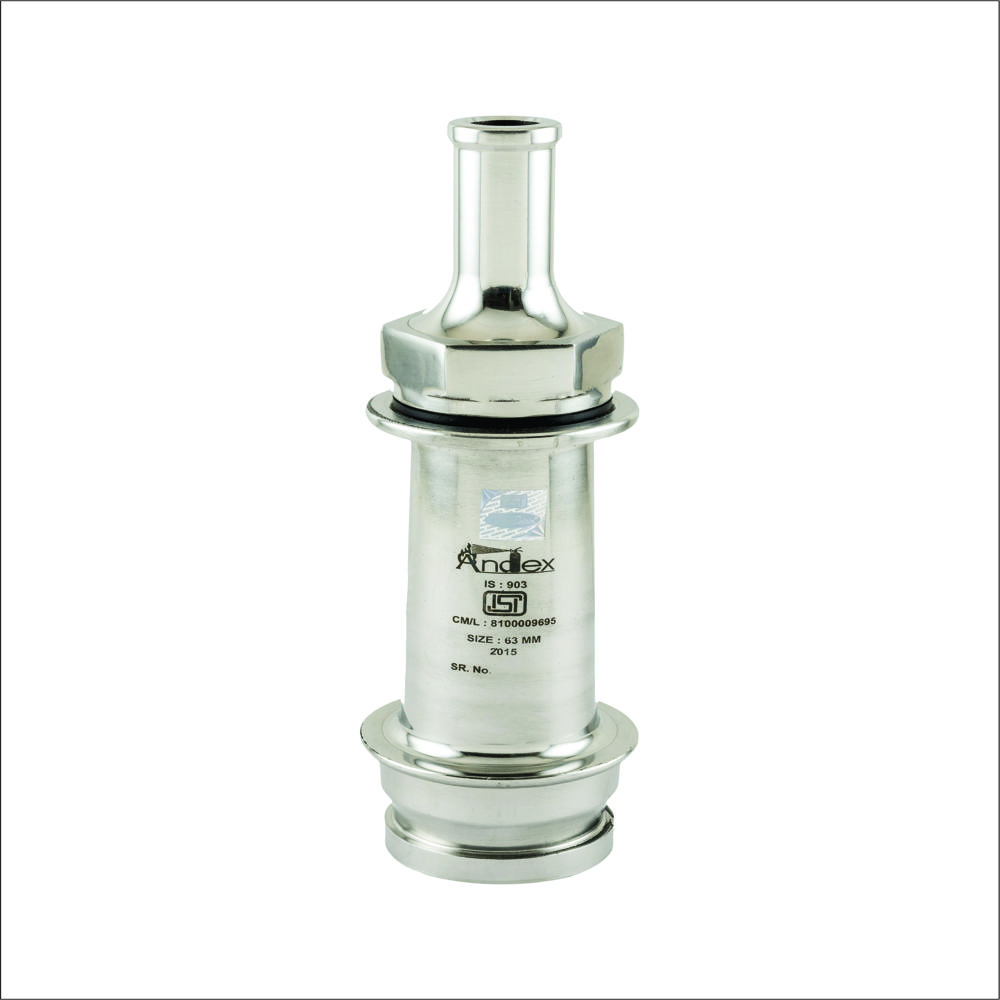

Send InquiryStainless Steel Branch Pipe
Price 1950.0 INR/ Piece
MOQ : 1 Piece
Stainless Steel Branch Pipe Specification
- Technology
- Manual operation
- Control Type
- Hand operated Nozzle
- Shape
- Cylindrical
- Coverage Area
- Varies as per application
- Features
- Rugged construction, corrosion resistant, easy attachment
- Coating Type
- Polished Stainless Steel
- Working Temperature
- -10C to +80C
- Mounting Type
- Handheld or Hose attached
- Fire Class
- Class A & B fires
- Operating Pressure
- Up to 16 bar
- Installation Type
- PIpe mounting / end connection
- Connectivity Type
- Male & Female Instantaneous Coupling
- Fire Extinguisher Type
- Branch pipe (water nozzle)
- Application
- Fire fighting equipment, Fire hydrant systems
- Max Flow Rate
- 350-600 LPM
- Diameter
- 38 mm (1.5 inch), 50 mm (2 inch), 63 mm (2.5 inch)
- Capacity
- High discharge
- Pressure
- Up to 1.6 MPa (16 bar)
- Standards
- IS 903
- Corrosion Resistance
- Yes
- Material Grade
- SS304/SS316
- Weight
- Approx. 2.5 kg
- End Connection
- ISI Marked Coupling
- Thread Type
- BSP/NPT
- Surface Finish
- Mirror/Polish
Stainless Steel Branch Pipe Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 100 Pieces Per Month
- Delivery Time
- 7 Days
About Stainless Steel Branch Pipe
Descriptions and specification Material of Construction
1. Material SS (Grade 304) IS: 6529
2. Type Instantaneous Inlet
3. Size 63 MM
4. Washer IS : 937
5. Overall Height With Nozzle 280 MM
6. Bore of nozzle 16 / 20 / 25 0.5 mm
7. Height of branch 200 0.5 mm
8. Height of the nozzle 100 1 mm
9. Thread 1 bsp parallel thread
10. Inlet (branch) 63 0.5 mm
11. Outlet (branch) 42.5 0.5 mm
Rugged Construction for Demanding Environments
Crafted from high-grade stainless steel (SS304/SS316), this branch pipe boasts exceptional durability and corrosion resistance. The polished surface not only enhances its aesthetic appeal but also withstands exposure to water and harsh firefighting environments, providing reliable performance for years.
Efficient Fire Suppression for Diverse Applications
With capacities suited for Class A & B fires and high discharge rates of up to 600 LPM, this branch pipe fits seamlessly into fire fighting equipment and hydrant systems. Its variety of diameters and compatibility with both handheld and hose-mounted use allow flexible installation and effective protection for different property sizes.
Easy Attachment and Instant Connectivity
Equipped with ISI-marked male and female instantaneous couplings, the pipe ensures swift and secure attachment to existing fire hydrant pipelines. The option of BSP/NPT threads enhances system compatibility, making integration simple for new and retrofit fire safety solutions.
FAQ's of Stainless Steel Branch Pipe:
Q: How does the Stainless Steel Branch Pipe improve fire fighting efficiency?
A: The branch pipe provides high discharge rates (350-600 LPM) with hand-operated control, allowing firefighters to deliver water precisely where needed. Its corrosion-resistant stainless steel ensures reliability and consistent performance during urgent fire suppression operations.Q: What are the main standards and certifications of this branch pipe?
A: It is manufactured to comply with IS 903 standards and features ISI-marked couplings for ensured quality, reliability, and compatibility with Indian fire fighting regulations.Q: When should I choose between SS304 and SS316 material grades?
A: SS304 is suitable for general indoor or mild environments, while SS316 is preferred in coastal or industrial areas with higher risk of chemical exposure, offering superior corrosion resistance.Q: Where can this branch pipe be installed for optimal use?
A: The branch pipe can be installed at the terminus of fire hydrant pipelines or hoses, either as a handheld nozzle or pipe-mounted fixture, in commercial, industrial, or residential fire safety systems.Q: What is the process for connecting the branch pipe to a hydrant system?
A: Simply attach the ISI-marked coupling using the male or female instantaneous connector to the hydrant or hose. The BSP/NPT thread type ensures tight and secure fitting with standard piping.Q: How does the mirror-polished finish benefit the product?
A: The polished surface enhances corrosion resistance and makes the nozzle easy to clean and maintain, ensuring long-term reliability and maintaining optimal appearance over time.
